Overview

This chapter presents pointers, arrays, and references. They appear in the same chapter because they are related:

• references are transparent abstractions of pointers — they represent a means of accessing an object via indirection
• arrays and pointers are closely related — the name of the array is treated as a pointer to the first element

Here is a write-up on pointers, arrays, references, and several related topics

Topics

Pointers

• Pointers are typed — on must specify the type of the object pointed to
  • T *tp;
• dereferencing / indirection

void *

• pointer to nothing/everything
• used to override pointer typing system; primarily for systems programming (accessing arbitrary addresses)

nullptr

• No address will be allocated at 0, so 0 is a good choice for a null pointer
• before nullptr, NULL was defined as a macro for 0

  #define NULL 0


• nullptr is an abstraction of 0 / NULL
• part of the language (known to the compiler)
• single nullptr, rather than one for each pointer type

Arrays

• Must specify the type and number (capacity) of elements
  • T ta[capacity];
  • Note the position of the []'s
• main operation is subscripting []
• Can be static, automatic (stack) or dynamic (heap/free store)
  • static

    int arr1[10];		// at global (file) scope — outside any function
    …
    int main() {…}


  • automatic (stack)

    void f() {
    	int arr2[100];
    	…
    }


  • dynamic (free store / heap)

    void g() {	// some function
    	…
    	int *ip = new int[n];
    	…
    }


• arrays are low-level and should be encapsulated in richer, more robust containers (e.g., vector)
• no array-level operations (e.g. can't assign one array to another)
• array name is treated as a pointer to first element
  • not sure if this is technically correct, but I like to think of the array name as a constant, non-lvalue (i.e., almost like a literal) pointer to the first element

  • this means arrays can't be passed by value, in the sense of making a copy of the entire array
  • note in the above dynamic case (the one allocated using new) the array is the anonymous storage allocated, and is distinct from the pointer (arr3) to which its address is assigned (which is why the pointer is named ip and not arr3)

• C-style string - 0-terminated array of chars
  • the '\0' acts as a trailer value for the elements of the array, since '\0' is not a valid textual character

Array Initializers

• Initialization within declaration similar to Java … list of values
  • if size left out, compiler infers from number of elements in list
  • if size supplied and too few elements, 0 is used for rest
  • if size supplied, too many elements is an error

String Literals

• sequence of characters within double quotes
• C-style string so compiler adds '\0' to the end

  char s[] = "Hello";


  • The above is the same as

    char s[] = {'H', 'e','l', 'l', 'o', '\0'};


  • (Note the omission of the capacity in the []'s — the compiler determines the capacity from the initialization list)
• the type of a string literal is an array of const character of capacity the number of characters + 1, i.e. const char[capacity]
  • thus the type of "Hello" is const char[6];
• Comparison is done via the strcmp function (from the C-Standard cstring library)
  • using == compares the pointers, not the contents (this is similar to Java String comparison using equals and not ==

    char s1[10], s2[10];
    …
    //if (s1 == s2) 		// probably NOT what you want
    if (strcmp(s1, s2) == 0)


    • this is no different than comparing two pointers of any other type; but when working with strings, we are more likely to forget that we should be comparing the contents
    • Using C++'s string class eliminates this whole issue … the equality and relational operators are overloaded to provide the expected semantics

      string s1, s2;
      …
      if (s1 == s2)		// OK


Pointers into Arrays

In a nutshell, once declared, an array (or at least its variable name) is basically a pointer to the first element.

• The subscript operation is actually defined in terms of pointers: a[i] is defined as *(a+i)
  • go back to the link at the top and look at pointer arithmetic

Navigating Arrays

• Arrays can be processed using subscripting:

  const int ARR_CAP = 10;
  int a[ARR_CAP];
  …
  for (int i = 0; i < ARR_CAP; i++)
  	cout << a[i];


  or pointers (several versions follow):

  const int ARR_CAP = 10;
  int a[ARR_CAP];
  …
  for (int *p = a; p < a+i; p++)		// p != a+i also good
  	cout << *p;


  const int ARR_CAP = 10;
  int a[ARR_CAP];
  …
  p = a;
  while (p != a+i) {			// basically the above for loop as a while
  	cout << *p;
  	p++;


  const int ARR_CAP = 10;
  int a[ARR_CAP];
  …
  for (int i = 0; i < ARR_CAP; i++)
  	cout << *(a+i);		// just the subscript expressed as pointer arithmetic


• In general, subscripting is used
  • That's because most arrays are processed by their size, which is basically a header value; and header value sequences are processed using counting (i.e., 'for') loops
  • The most common exception are when processing C-strings, which use a trailing value ('\0'), and thus use a condition-based (i.e., 'while') loop.
    • the simplest way to process such a sequence is to move through the elements until encountering a '\0'

      char s[10] = "Hello";	// C-style string
      int length = 0;
      char *p = s;
      while (*p != '\0') {	// 'while (*p)' also works and is the usual way to write it (remember, 0 is false)
      	length++
      	p++;
      }					// 'length' now contains the length of the string

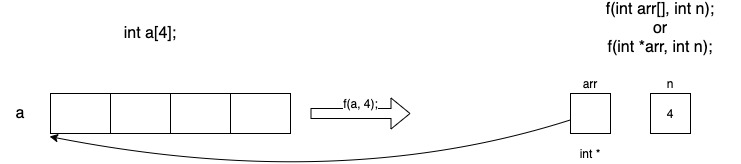

Passing Arrays

• Arrays are not themselves passed by value, rather a pointer to the first element is passed (by-value)

  • this is a C-version of our convention of passing class objects by-reference, except it's built into the language and not a convention
  • it's based on the limited size of memory available back in the 70's, so passing a large array was impractical if not impossible
• Array parameters are thus declared either:

  void f(int a[], int n);	// remember, almost always need to  pass the number of elements


  or

  voif f(int *a, int n);


• Remember: arrays passed to functions are always passed as pointers to the first element

C-Style Strings (char *)

C — which did not have classes, and the ability to have the resource-handle memory management available in C++ — represented strings as arrays of characters. They are often referred to as char * because of the close relationship between arrays and pointers. Here is a write-up on C-Style Strings. They're ubiquitousness in C has been heavily reduced in C++ because of the higher-level string class that handles its own memory management and provides a much more intuitive interface via operator overloading. However, there are still several reasons for being at least acquainted with C-Style strings and their processing idioms:

• command-line arguments come into the program as parameters to main, and for the sake of backwards compatibility to C, they have retained their semantics in C++. As such these arguments are C-Style strings. (One can avoid most of the char * semantics by casting the arguments to string — as we did with string-literal exceptions — but one must still read other's code, and not everyone will avoid working with the char * (and some of that code might derive from C making the char * unavoidable).

  // arg_lister.cpp
  int main(int argc, char *argv[]) {
  	for  (int i = 0; i < argc; i++)
  		cout << "argv[" << i << "]: " << argv[i] << endl;
  }


  weiss> arg_lister Hello world !
  argv[0]: Hello
  argv[1]: world
  argv[0]: !


• as mentioned above, and before, string literals are of type const char *, again for C compatibility. Occasionally you may run into issues — most typically compiler errors — related to that type, and understanding the error usually requires taking the array/pointer character of the literal into account.
  • For example, we've seen that the constructor (and open function) of fstream objects accepts a char * argument rather than the expected string.
• from the point of view of being a 'native', there are several programming idioms that crop up when using C-Style strings, all related to working with pointers. These idioms — besides being somewhat unique to C/C++ (because of the low-level nature of pointers in these languages) — are also quite elegant and 'beautiful, and one cannot really call oneself a C++ programmer — and definitely not a C programmer — without at least understanding these idioms. (The above write-up presents these idioms.)

Pointers and Ownership

The crucial issue is … once an object has been (dynamically) allocated on the free store (heap), who is responsible for that memory, i.e., who owns it?

• The naive answer if the pointer (or containing logic) that allocated it; but pointers are often 'passed around'
• Stroustrup refers to the object as a resource (there's a finite supply) which must be carefully maintained
• The suggestion is to always maintain a 'master' pointer in a class which can control the allocation (typically in the constructor) and deallocation (in the destructor) of the resource
  • A class that does this is called a resource handle class
  • Other pointers to the object should not delete the object
• As an example, take vector:
  • it contains a pointer to the underlying array, which is allocated at constructor time (and possibly reallocated on resizing), and deallocated when the destructor is invoked (i.e., when the vector object is destroyed
  • Given the following:

    void f() {
    	vector vi;
    	…
    }


    • vi lives on the stack and is created when f is called
      • the constructor dynamically allocates the underlying array
    • when f is exited, vi — like all other local variables — is destroyed, and its destructor is called
      • the destructor deallocates the array (using delete)
  • By encapsulating the ownership (i.e., responsibility for the allocation/deallocation) of the underlying array in the vector, we gain total, manageable control over the resource (the memory used by the array)

References

Unlike pointers, references do not maintain their own identity, nor do they require special machinery (such as * or -> to access what they refer to (their alias).

• the syntax for working with a reference (other than its declaration) is the same as for the object it refers to (is an alias of)
• references can't be 'reseated', i.e., after assigned their initial alias they can no longer be ;moved' to refer to another object
• there is no 'null' value for an alias
