CIS 3142 Advice — Chapter 1

CISC 3142
Programming Paradigms in C++
Part 1 — Introduction
Chapter 3 — A Tour of C++: Abstraction Mechanisms

Reading from the Text

Chapter 3 — A Tour of C++ : Abstraction Mechanisms

Overview

Introduction of the two basic abstraction mechanisms in the language: classes (for modelling) and templates (for generic behavior)

Topics

Classes

Concrete Types
Abstract Types
An abstract (data) type (ADT) is a data type in which the set of legal values and associated operations are specified, while the manner in which they are carried out is left unspecified.

      • This is accomplished via pure virtual functions.
    class Stack {
public:
	virtual void push(int) = 0;
	virtual void pop() = 0;
	virtual bool isEmpty() = 0;
};
Virtual Function
  • One must declare (in the base class) the possibility of overriding a function, using the virtual keyword
    class B {
public:
	…
	virtual void f();	// expects/permits a derived class to override f polymorphically ally (i.e., with dynamic function resolution)
	…
};
  • without virtual function resolution remains static
  • In the above example, B would be expected to have its pwn implementation (i.e., function body) for f
  • alternatively, one could make f abstract at the level of B by declaring it a pure virtual function
    	virtual void f() = 0;
    • B then becomes an abstract class, and no objects can be declared/created of type B
    • however, pointers/references to B can be declared and objects of derived classes (in which f has been defined) can be upcast to such a reference.
Class Hierarchies

Copy/Move

Resources
  • as defined before, a resource is anything of a limited nature

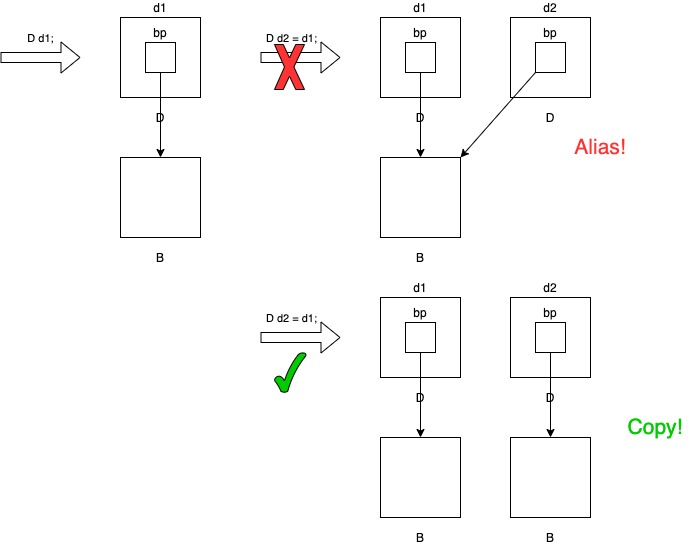

  • resources must be properly handled in the context of copying (forming aliases)
  • containers as resource handles
    • the container contains a pointer to a dynamically allocated resource (array, I/O stream, etc)
    • constructors, destructors, copy, and move operations provide support for this

Templates

Here is a writeup on templates
Parameterized Types (Class Templates)
template <typename T>
class Pair {
public:
	Pair(T f, T s) : first(f), second(s) {}	// member initialization list — Preferred to assigning in the body
	T getFirst() {return first;}
	T getSecond() {return second;}
	void swap() {
		T temp = first;
		first = second;
		second = temp;
	}
private:
	T first, second;
};
…
Pair<int> pi(2, 3);
Pair<string> ps("Hello", "Goodbye");
Function Templates
Function Object (Functor)
  • class whose main purpose is to provide a member function to be invoked in a generic algorithm
    • an object of the class would then be passed to the generic algorithm to supply the type-specific semantics defined in the method
  • Consider the following template for bubble sort:
    template <typename T>
void sort(T arr[], int n) {
	for (int last = n-1; i > 0; i--)
		for (int i = 0; i < last; i++)
			if (arr[i] > arr[i+1]) {
				T temp = arr[i];
				arr[i] = arr[i+1];
				arr[i+1]= temp;
			}
}
    • The 'weak' point is the > operator for the (as yet unspecified type T)
      • We could restrict the sort instantiation to types having such an operator
      • or we could pass such an operator in to the sort:
        template <typename T>
void sort(T arr[], int n, ??? gt) {
	for (int last = n-1; i > 0; i--)
		for (int i = 0; i < last; i++)
			if (gt(arr[i], arr[i+1])) {
				T temp = arr[i];
				arr[i] = arr[i+1];
				arr[i+1]= temp;
			}
}
      • The representation of that function is a functor
    • In Java, this would typically be represented by an interface with a single method
      interface Comparator {
	int compare(Object obj1, Object obj2);
}

void sort(Object [] arr, Comparator comparator) {
	for (int last = arr.length-1; i > 0; i--)
		for (int i = 0; i < last; i++)
			if (comparator.compare(arr[i], arr[i+1] == 1) {
				Object temp = arr[i];
				arr[i] = arr[i+1];
				arr[i+1]= temp;
			}
}

class Employee {
…
	String getName() {…};
	int getID() {…};
…
}

Employee [] employees = new …

class IDComparator implements Comparator {
	int compare(Object obj1, Object obj2) {
		Employee e1 = (Employee)obj1;
		Employee e2 = (Employee)obj2;
		return e1.getID().compareTo(e2.getID());
	}
}
class NameComparator implements Comparator {
	int compare(Object obj1, Object obj2) {
		Employee e1 = (Employee)obj1;
		Employee e2 = (Employee)obj2;
		return e1.getName().compareTo(e2.getName());
	}
}

sort (employees, new NameComparator());
…
sort (employees, new IDComparator());
    • C++ provides a more intuitive (but somewhat more complex) mechanism for specifying functors

Advice

Chapter 3 - A Tour of C++: Abstraction Mechanisms
